Place of Origin: | China |
Certification: | ISO9001:2015 |
Model Number: | DG1/8" |
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiable |
Packaging Details: | 25 kg / kraft paper bag, 100 kg / large bag 150 kg / sealed iron drum |
Delivery Time: | Negotiable |
Payment Terms: | L/C;T/T |
Supply Ability: | 6000 ton/year |
Product Name: | Molecular Sieve Desiccant | Classification: | Chemical Auxiliary Agent |
---|---|---|---|
CAS: | 1318-02-1 | Purity: | 99% |
Usage: | Petroleum Additives, Water Treatment Chemicals | Model Number: | 13X/3A/4A/5A |
Advantage: | Strong Adsorption Capacity, High Strength | Diameter: | 3.0-3.5mm |
Wear Rate(%): | ≤0.25 | ||
High Light: | natural gas drying molecular sieve 0.4 nm,3.5mm molecular sieve 0.4 nm,3.5mm molecular sieves for water removal |
Natural Gas Drying 3.5mm Molecular Sieve 0.4 Nm
Product introduction
Zeolite molecular sieve is a aluminosiliate with uniform pores. These pore diameters are similar in size to small molecules. Thus molecules with diameter less than the pore size can enter molecular sieve and be adsorbed, while molecules with diameter bigger than the pore size can not go into molecular sieve and be excluded (Tab. 1). Moreover, molecular sieve pore size can be precisely adjusted through introducing of different metal ions such as Na+(4A, 13X), K+(3A), Ca+(5A, CaX), Li+(LiLSX, LiLX). This property enables molecular sieve to separate molecules of different size. Another important property of molecular sieve is it is easier to adsorb polar molecules other than non polar molecules, thus makes it possible to separate molecules by its polarity
To offer a slightly larger pore opening, calcium is used in an ion exchange to produce Type 5A molecular sieve. A sodium ion is exchanged with the slightly smaller calcium ion, which increases the pore size of the crystal. Type 5A is able to adsorb certain mercaptans while still small enough to block larger hydrocarbons from entering the crystal. These properties allows this molecular sieve to be utilized in LNG and LPG refining to remove sulfur compounds while allowing the desired hydrocarbons to pass through to the product stream. Type 5A is also useful for producing relatively pure streams of hydrogen or oxygen since it is able to adsorb nitrogen, carbon monoxide, and other contaminants.
molecular sieve technical Index:
Type | Bulk Density(g/ml) | Static water absorption(%) | Wear rate(%) | Application |
3A | 0.60-0.68 | 19-20 | 0.3-0.6 | Used for drying petroleum cracking gas and olefin |
4A | 0.60-0.65 | 20-21 | 0.3-0.6 | Used for natural gas drying and paraffin separation |
5A | 0.60-0.65 | 20-21 | 0.3-0.5 | Air drying and purification, natural gas dewatering and desulfurization, LPG desulfurization and psa process of oxygen and hydrogen production |
5A-DW | 0.45-0.50 | 21-22 | 0.3-0.6 | Dewaxing, condensing aviation kerosene and diesel oil and |
13X | 0.55-0.56 | 23-24 | 0.3-0.5 | Used for LPG natural gas drying desulfurization purification |
13X-AS | 0.55-0.65 | 23-24 | 0.3-0.5 | For air separation industry decarbonization, drying |
Scope of application
3A molecular sieve: It is mainly used for drying petroleum cracking gas, olefin, gas refinery, oil field gas, and is a desiccant for chemical industry, medicine, insulating glass and other industries.
4A molecular sieve: Mainly used for the drying of natural gas and various chemical gases and liquids, refrigerants, medicines, electronic materials and variable substances, argon purification, methane, ethane and propane separation.
5A molecular sieve: Main uses:
1. Natural gas drying, desulfurization, and carbon dioxide removal;
2. Separation of nitrogen and oxygen, separation of nitrogen and hydrogen to produce oxygen, nitrogen and hydrogen;
3. Petroleum dewaxing, separation of normal hydrocarbons from branched hydrocarbons and cyclic hydrocarbons.
13XAPG molecular sieve: Mainly used for the purification of feed gas from large and medium-sized air separation plants.
Common model
Molecular sieve models commonly used in the gas industry;
Type A: Potassium A (3A), Sodium A (4A), Calcium A (5A), Type X: Calcium X (10X), Sodium X (13X)
Type Y: Sodium Y, Calcium Y

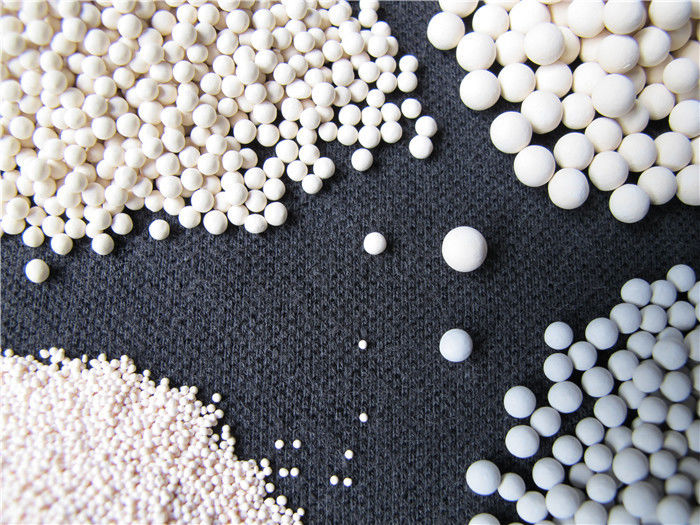

Product Pictures
Product Performance
Molecular sieve has strong moisture absorption capacity and is used for gas purification treatment. Avoid direct exposure to the air during storage. Molecular sieves that have been stored for a long time and have absorbed moisture should be regenerated before use. Molecular sieve avoids oil and liquid water. Try to avoid contact with oil and liquid water when in use. The gases to be dried in industrial production include air, hydrogen, oxygen, nitrogen, argon, etc. Two adsorption dryers are used in parallel, one works, and the other can be regenerated. Alternate work and regeneration to ensure continuous operation of the equipment. The dryer works at 8-12°C, and regenerates when heated to 350°C. Different specifications of molecular sieve have slightly different regeneration temperatures. Molecular sieves have a good catalytic effect on certain organic gas phase reactions.
Product Features
1. Adsorption is selective.
⑴ Choose the adsorption according to the different molecular diameter.
⑵ Select the adsorption according to the polarity of the molecule.
⑶ Selective adsorption according to the degree of molecular unsaturation.
⑷ Select adsorption according to different boiling points.
2. It has low concentration and high adsorption characteristics at higher temperature.
3. Cation exchange characteristics.
4. Catalytic properties.
⑴ The heterogeneous catalytic reaction is carried out on the surface of the catalyst. When the molecular sieve is used as a catalyst or carrier, the catalytic reaction is to catalyze the substances entering the micropores of the molecular sieve.
⑵ Only produce products whose molecules are smaller than the pores of the molecular sieve.
⑶ Because of the large surface area, it has high activity.
⑷ Strong resistance to poisoning and high thermal stability.
⑸ When used as a carrier, the metal catalyst can be evenly distributed on the inner surface of the molecular sieve, so it is easy to prepare a catalyst with good repeatability.
Factory information
Shanghai Xuefeng Molecular Sieve Co., Ltd. adopts the most advanced and fully automated assembly line molecular sieve production technology in China, and has positions for dosing, kneading, extrusion, drying, roasting and packaging. The main equipment includes pelletizing machine, hardening cylinder, kneader, extruder, belt dryer, rotary roasting furnace, vibrating screen, scale and other ancillary facilities. The production process parameters are all automatically controlled, and there is no paper recorder attached. , The results of the process parameters are comprehensively recorded, and at the same time, the operators of each position shall manually record the parameters every hour to ensure the traceability of the operation process. At the same time, the company pays attention to the inspection of intermediate products, and has set up sampling points for intermediate products in the ingredients, extrusion molding, and drying positions to ensure that the intermediate products meet the specified quality requirements.
