High Strength 8×12 Beads Zeolite Molecular Sieve 0.4 Nm

High Strength 8×12 Beads Zeolite Molecular Sieve 0.4 Nm

Product Description

Molecular sieve is a kind of cubic crystal aluminosilicate compounds, mainly composed of silicon and aluminum by oxygen bridge composed of open framework structure, the structure has many uniform pore size pore and neat, the internal surface area of big hole. In addition, metal ions and combined water with lower price and larger ionic radius are also included. Because the water molecules lose continuously after heating, but the crystal structure unchanged, formed many of the same size and cavity cavity, many of the same diameter pores connected, these tiny hole diameter size uniform, the ratio of the internal pore diameter of small molecules adsorbed to the cavity to the rejection ratio of channels molecular in the outside, so the molecular shape of different diameters, different degrees of polar molecules, molecules of different boiling points, from molecular separation of saturated in different degrees, which has "sieving" molecules, called molecular sieve. At present, molecular sieves are widely used in chemical, electronic, petrochemical, natural gas and other industries.

Zeolite molecular sieve is a hydrate of crystalline aluminosilicate salt.Its chemical formula is Mx/m[(AlO2)x·(SiO2)y]·zH2O M stands for cations, M represents its valence states, and Z represents hydration numbers, and X and y are integers.After activiation of zeolit molecular sieve,the water molecules are removed and remaining atoms form a cage structure with a pore size of 3Å to 10Å. In molecular sieves,there are many empty cavities of a certain size,and there are many holes with consistent a diameter (also called a window) connected between them. Because the molecular sieve can adsorb molecules smaller than its pore size into the cavities, the molecule with larger pore size is excluded from its cavities and plays the role of sieving molecule. Therefore,it is named as molecular sieve. Zeolite molecules can exist in nature and have been artificially synthesized since 70s of the last century.

4A molecular sieve technical Index:

Basic performance

It has the structure and characteristics of a crystal, the surface is a solid skeleton, and the internal cavities can play the role of adsorbing molecules. There are pores connected to each other between the cavities, and molecules pass through the pores. Due to the clean nature of the pores, the pore size distribution of the molecular sieve is very uniform. Molecular sieves selectively adsorb molecules based on the size of the pores inside their crystals, that is, adsorb molecules of a certain size while repelling molecules of larger substances. Zeolite molecular sieves can be divided into three groups: small pores, mesopores (mesopores) and double pore zeolites according to their pore or channel system.

Structure diagram

The adsorption of zeolite molecular sieve has two characteristics:

(1) The Lewis center on the surface is very polar;

(2) The size of the cage or channel in the zeolite is small, which makes the gravitational field strong. Therefore, its adsorption capacity for adsorbate molecules far exceeds other types of adsorbents. Even if the partial pressure (or concentration) of the adsorbate is very low, the adsorption capacity is still considerable. The adsorption and separation effect of zeolite molecular sieve is not only related to the size and shape of adsorbate molecules, but also related to its polarity. Therefore, zeolite molecular sieves can also be used for the separation of substances of similar size.

Application:

It can be used for pressure swing adsorption separation of oxygen-enriched air.

Storage

Room temperature, relative humidity not greater than 90% indoors: avoid water, acid, alkali, isolate air, and store in airtight.

Regeneration

Removal of water: dry gas such as nitrogen, air, hydrogen, saturated hydrocarbon, etc. can be used to heat to 150-320℃ and pass into the molecular sieve bed under 0.3-0.5kg/m2 pressure for 3-4 hours, and then to the adsorber Pass in dry cold air for about 2-3 hours, isolate the air and cool to room temperature.

Removal of organic matter: the adsorbate can be replaced from the molecular sieve with water vapor, and then heated to (1). The regeneration can also be regenerated by superheated steam or inert gas at 200-350℃. Exposure to gases that produce explosive mixtures).

The degassed substances can be regenerated by the decompression removal method.

Package

Can be packaged according to user needs.

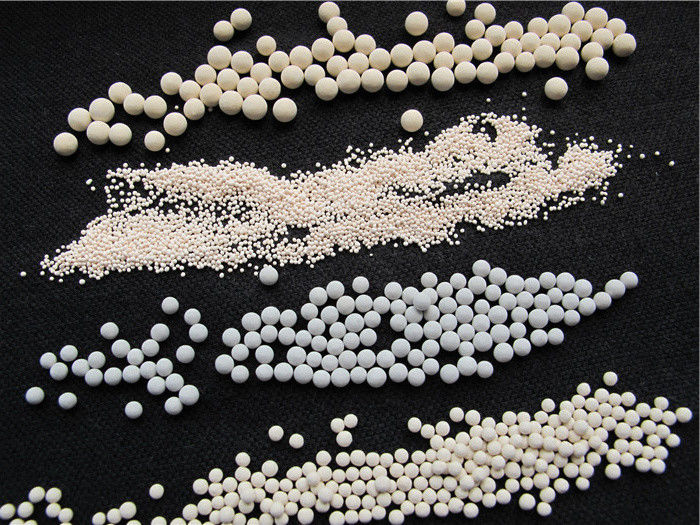

Product Pictures
