Place of Origin: | China |
Certification: | ISO9001:2015 |
Model Number: | DG1/8" |
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiable |
Packaging Details: | 25 kg / kraft paper bag, 100 kg / large bag 150 kg / sealed iron drum |
Delivery Time: | Negotiable |
Payment Terms: | L/C;T/T |
Supply Ability: | 6000 ton/year |
Product Name: | 13X Molecular Sieve Adsorbent | Classification: | Chemical Auxiliary Agent |
---|---|---|---|
CAS: | 1318-02-1 | Purity: | 99% |
Usage: | Petroleum Additives, Water Treatment Chemicals | Model Number: | 13X |
MF: | Na2O, Al2O3, SiO2 | Advantage: | Strong Adsorption Capacity, High Strength |
Diameter: | 3.6-4.8mm | Wear Rate(%): | ≤0.25 |
High Light: | 4.8mm 13X Molecular Sieve Adsorbent,630KG/M3 13X Molecular Sieve Adsorbent,630KG/M3 13x mol sieve |
4.8mm 630KG/M3 13X Molecular Sieve Adsorbent
Product introduction
Molecular sieve has a uniform microporous structure, this pore with uniform size,molecule is smaller than the diameter of the molecules can be adsorbed into the cavity of the internal by these pore,and have a preferential adsorption capacity for polar molecules and unsaturated molecules,So the different degree of polarity, different degrees of saturation, different molecular size and different boiling points of the molecules can be separated, that is, with the "sieving" the role of molecules, so called molecular sieve.
A main component of X-type molecular sieve is aluminosilicate, silicon-oxy and alumina tetrahedron to form a FAU-type structure the main crystal structure is twelve membered rings.
In molecular sieve 13X, sodium ion formation with a pore opening of 9-10Å (1Å=1×10-10m), that is type 13X (also known as NaX-type) molecular sieve.
13X molecular sieve technical Index:
Item | Specification | Specification |
Product Type | 8*12 Beads | 4*8 Beads |
Bulk Density (KG/M3) | 640 | 630 |
Particle Diameter (mm) | 1.6-2.5 | 3.6-4.8 |
Crush Strength (N) | 26 | 85 |
Equilibrium H2O Capacity* | ≥26% | ≥26% |
Equilibrium CO2 Capacity** | ≥18% | ≥18% |
Water Content (as shipped) | <1.5% | <1.5% |
Scope of application
Air refining by removing carbon dioxide and water. Oxygen PSA (Pressure Swing Adsorption) process. Removal of grease and solvents. Removal of mercaptans and hydrogen sulphide from natural gas and hydrocarbon liquid

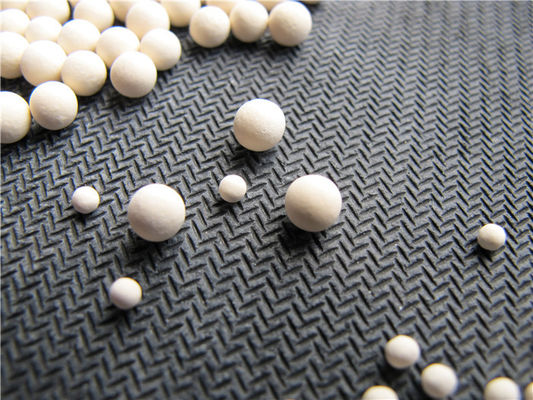

Product Pictures
Product Performance
Molecular sieve has strong moisture absorption capacity and is used for gas purification treatment. Avoid direct exposure to the air during storage. Molecular sieves that have been stored for a long time and have absorbed moisture should be regenerated before use. Molecular sieve avoids oil and liquid water. Try to avoid contact with oil and liquid water when in use. The gases to be dried in industrial production include air, hydrogen, oxygen, nitrogen, argon, etc. Two adsorption dryers are used in parallel, one works, and the other can be regenerated. Alternate work and regeneration to ensure continuous operation of the equipment. The dryer works at 8-12°C, and regenerates when heated to 350°C. Different specifications of molecular sieve have slightly different regeneration temperatures. Molecular sieves have a good catalytic effect on certain organic gas phase reactions.
Our Services
1.We promise to reply your inquiry relational our product within 24hours.
2.OEM&ODM service for your unique idea with absolutely convenient.
3.Experienced foreign trader with professional product knowledge.
4.Value on business credite , promise to protect your sales data, design,patent information.
5. Sample & OEM service is available
6. After-sales service. any question will be settled within 3 days
Factory information
Shanghai Xuefeng Molecular Sieve Co., Ltd. adopts the most advanced and fully automated assembly line molecular sieve production technology in China, and has positions for dosing, kneading, extrusion, drying, roasting and packaging. The main equipment includes pelletizing machine, hardening cylinder, kneader, extruder, belt dryer, rotary roasting furnace, vibrating screen, scale and other ancillary facilities. The production process parameters are all automatically controlled, and there is no paper recorder attached. , The results of the process parameters are comprehensively recorded, and at the same time, the operators of each position shall manually record the parameters every hour to ensure the traceability of the operation process. At the same time, the company pays attention to the inspection of intermediate products, and has set up sampling points for intermediate products in the ingredients, extrusion molding, and drying positions to ensure that the intermediate products meet the specified quality requirements.
