Product introduction

Commonly used adsorbents include various activated carbon adsorbents and metal and non-metal oxide adsorbents (such as silica gel, alumina, molecular sieve, natural clay, etc.) using carbon as raw materials.

The main indicators to measure the adsorbent are: adsorption capacity for different gas impurities, abrasion rate, loose bulk density, specific surface area, crush strength, etc. It is used to filter out poisonous gas, refine petroleum and vegetable oil, prevent viruses and molds, recover gasoline in natural gas, and decolorize sugar and other colored substances.

The adsorbents commonly used in industry are: silica gel, activated alumina, activated carbon, molecular sieves, etc. In addition, there are adsorption materials developed for selective adsorption of certain components. The success of gas adsorption and separation largely depends on the performance of the adsorbent. Therefore, the choice of adsorbent is the primary issue in determining the adsorption operation.

Molecular Sieve 13X HP is mainly used in PSA oxygen concentrators and oxygen concentrators device, and as well as the industrial PSA unit, with the characteristics of higher N2 adsorption capacity and N2 with O2 selectivity, easy desorption and etc.

13X molecular sieve technical Index:

13X Molecular Sieve Desiccant Typical Application

00001. Ammonia synthesis gas drying and purification

00002. Molecular Sieve 13X removed CO2 in cracking gas

00003. Molecular Sieve 13X is a type of sodium aluminosilicate

00004. Molecular Sieve 13X removed H2O, CO2 in gas purification in air separation unit

00005. Molecular Sieve 13X used for general gas ( compressed air, permanent air ) dehydration depth

Common model

Molecular sieve models commonly used in the gas industry;

Type A: Potassium A (3A), Sodium A (4A), Calcium A (5A), Type X: Calcium X (10X), Sodium X (13X)

Type Y: Sodium Y, Calcium Y

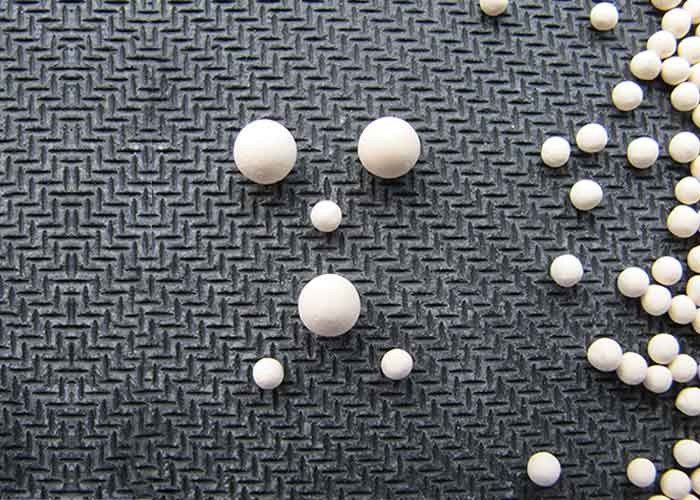

Product Pictures

Product Performance

Molecular sieve has strong moisture absorption capacity and is used for gas purification treatment. Avoid direct exposure to the air during storage. Molecular sieves that have been stored for a long time and have absorbed moisture should be regenerated before use. Molecular sieve avoids oil and liquid water. Try to avoid contact with oil and liquid water when in use. The gases to be dried in industrial production include air, hydrogen, oxygen, nitrogen, argon, etc. Two adsorption dryers are used in parallel, one works, and the other can be regenerated. Alternate work and regeneration to ensure continuous operation of the equipment. The dryer works at 8-12°C, and regenerates when heated to 350°C. Different specifications of molecular sieve have slightly different regeneration temperatures. Molecular sieves have a good catalytic effect on certain organic gas phase reactions.

Product Features

1. Adsorption is selective.

⑴ Choose the adsorption according to the different molecular diameter.

⑵ Select the adsorption according to the polarity of the molecule.

⑶ Selective adsorption according to the degree of molecular unsaturation.

⑷ Select adsorption according to different boiling points.

2. It has low concentration and high adsorption characteristics at higher temperature.

3. Cation exchange characteristics.

4. Catalytic properties.

⑴ The heterogeneous catalytic reaction is carried out on the surface of the catalyst. When the molecular sieve is used as a catalyst or carrier, the catalytic reaction is to catalyze the substances entering the micropores of the molecular sieve.

⑵ Only produce products whose molecules are smaller than the pores of the molecular sieve.

⑶ Because of the large surface area, it has high activity.

⑷ Strong resistance to poisoning and high thermal stability.

⑸ When used as a carrier, the metal catalyst can be evenly distributed on the inner surface of the molecular sieve, so it is easy to prepare a catalyst with good repeatability.

Factory information

Shanghai Xuefeng Molecular Sieve Co., Ltd. adopts the most advanced and fully automated assembly line molecular sieve production technology in China, and has positions for dosing, kneading, extrusion, drying, roasting and packaging. The main equipment includes pelletizing machine, hardening cylinder, kneader, extruder, belt dryer, rotary roasting furnace, vibrating screen, scale and other ancillary facilities. The production process parameters are all automatically controlled, and there is no paper recorder attached. , The results of the process parameters are comprehensively recorded, and at the same time, the operators of each position shall manually record the parameters every hour to ensure the traceability of the operation process. At the same time, the company pays attention to the inspection of intermediate products, and has set up sampling points for intermediate products in the ingredients, extrusion molding, and drying positions to ensure that the intermediate products meet the specified quality requirements.
