| Place of Origin: | China |
| Certification: | ISO9001:2015 |
| Model Number: | XH-7 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25 kg / kraft paper bag, 100 kg / large bag 150 kg / sealed iron drum |
| Delivery Time: | Negotiable |
| Payment Terms: | L/C;T/T |
| Supply Ability: | 6000 ton/year |
| Product Name: | Refrigerant Desiccant | Classification: | Chemical Auxiliary Agent |
|---|---|---|---|
| CAS: | 1318-02-1 | Purity: | 99% |
| Usage: | Petroleum Additives, Water Treatment Chemicals | Advantage: | Strong Adsorption Capacity, High Strength |
| Diameter: | 1.7-2.4mm | Wear Rate(%): | ≤0.20 |
| Highlight: | XH-7 Refrigerant Molecular Sieve,2.4mm Refrigerant Molecular Sieve,2.4mm Molecular Sieve Desiccant |
||

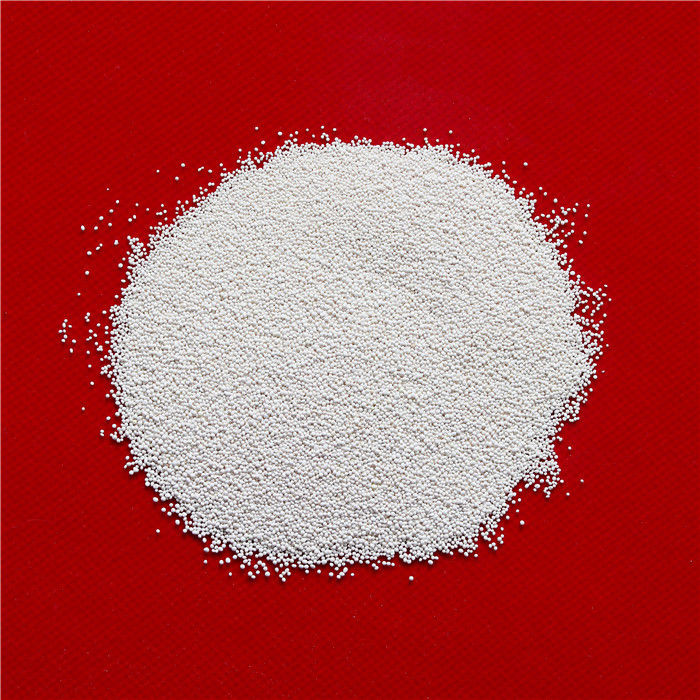

XH-7 2.4mm Refrigerant Molecular Sieve Desiccant
Molecular Sieve Pellets Introduction
XH refrigerant desiccant effectively remove moisture and other contaminants from refrigerant, thus, avoiding ice formation and protecting the system from blockage and corrosion. With higher crush strength and lower attrition, they are playing an important role in minimizing the refrigerant dew point and widely used in different kinds of refrigerant plants.
XH-5 molecular sieve is mainly used for R12 and R22 refrigerant drying and purification, improve refrigerating effect.
XH-7 molecular sieve is used to dehydration and desiccation for new type R-134a,butane and other special refrigerants, which are used in refrigerator, deepfreeze and air conditioning.
XH-9 molecular sieve is used commercially in drying refrigerants in air conditioners, iceboxes and refrigerators in cars, station wagons, refrigerating trucks, trains and shipper.
XH-11 molecular sieve is used for dehydration and drying of new refrigerants R407C,R410 etc.
Technical index:
| Items | Unit | Technical index | |
| XH-5 | XH-7 | ||
| mesh | mm | 1.7-2.4 | 1.7-2.4 |
| Static water adsorption | % | ≥20.5 | ≥20.0 |
| Bulk density | kg/l | ≥0.80 | ≥0.80 |
| Compressive strength | N | ≥66 | ≥66 |
| Wear rate | % | ≤0.20 | ≤0.20 |
| Package moisture content | % | ≤1.5 | ≤1.5 |
Application
Refrigerant desiccant can be used in all kinds of refrigerant filters, including filters in refrigerators, freezers, air conditioners and other refrigeration and heat exchange devices.
Storage
The molecular sieve should be stored at room temperature, and the relative humidity is not more than 90% indoors: avoid water, acid, alkali, isolate the air, and store in airtight
Packaging
It can be packaged according to the needs of customers.
Product Pictures
Factory information
Shanghai Xuefeng Molecular Sieve Co., Ltd. adopts the most advanced and fully automated assembly line molecular sieve production technology in China, and has positions for dosing, kneading, extrusion, drying, roasting and packaging. The main equipment includes pelletizing machine, hardening cylinder, kneader, extruder, belt dryer, rotary roasting furnace, vibrating screen, scale and other ancillary facilities. The production process parameters are all automatically controlled, and there is no paper recorder attached. , The results of the process parameters are comprehensively recorded, and at the same time, the operators of each position shall manually record the parameters every hour to ensure the traceability of the operation process. At the same time, the company pays attention to the inspection of intermediate products, and has set up sampling points for intermediate products in the ingredients, extrusion molding, and drying positions to ensure that the intermediate products meet the specified quality requirements.
