Place of Origin: | China |
Certification: | ISO9001:2015 |
Model Number: | 6×8 mesh |
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiable |
Packaging Details: | 25 kg / kraft paper bag, 100 kg / large bag 150 kg / sealed iron drum |
Delivery Time: | Negotiable |
Payment Terms: | L/C;T/T |
Supply Ability: | 6000 ton/year |
Product Name: | 5A Molecular Sieve Desiccant | Classification: | Chemical Auxiliary Agent |
---|---|---|---|
CAS: | 1318-02-1 | MF: | CaO, Na2O, Al2O3, SiO2 |
Purity: | 99% | Usage: | Petroleum Additives, Water Treatment Chemicals |
Model Number: | 5A | Advantage: | Strong Adsorption Capacity, High Strength |
Diameter(mm): | 1.5-2.0 | Shape: | Sphere, Strip, Etc |
High Light: | 1/16" Molecular Sieve 5A,Petroleum Additives Molecular Sieve 5A,1/16" 5a molecular sieve |
Petroleum Additives 1/16" Molecular Sieve 5A
Product introduction
Molecular sieve 5a is an effective absorbing solution for various applications. This most reliable desiccant can be used for:
Separating process of normal paraffin
Removing moisture and hydrocarbons from refrigerants
Drying of natural gas
Removing carbon dioxide from cracked gas and natural gas
Drying and purifying PSA oxygen
Drying and Separation of aromatics
Liquefied petroleum gas sweetening
Refinement of ethanol by drying moisture and carbon dioxide
Pressure Swing Adsorption process of oxygen and hydrogen
Zeolite molecular sieve is a aluminosiliate with uniform pores. These pore diameters are similar in size to small molecules. Thus molecules with diameter less than the pore size can enter molecular sieve and be adsorbed, while molecules with diameter bigger than the pore size can not go into molecular sieve and be excluded (Tab. 1). Moreover, molecular sieve pore size can be precisely adjusted through introducing of different metal ions such as Na+(4A, 13X), K+(3A), Ca+(5A, CaX), Li+(LiLSX, LiLX). This property enables molecular sieve to separate molecules of different size. Another important property of molecular sieve is it is easier to adsorb polar molecules other than non polar molecules, thus makes it possible to separate molecules by its polarity
To offer a slightly larger pore opening, calcium is used in an ion exchange to produce Type 5A molecular sieve. A sodium ion is exchanged with the slightly smaller calcium ion, which increases the pore size of the crystal. Type 5A is able to adsorb certain mercaptans while still small enough to block larger hydrocarbons from entering the crystal. These properties allows this molecular sieve to be utilized in LNG and LPG refining to remove sulfur compounds while allowing the desired hydrocarbons to pass through to the product stream. Type 5A is also useful for producing relatively pure streams of hydrogen or oxygen since it is able to adsorb nitrogen, carbon monoxide, and other contaminants.
5A molecular sieve technical Index:
Index Item | Unit | Technical index | |||
5A-1 1/16" | PSA-H2 | ||||
Size | 1/16" | 4×8 mesh | |||
(RK-29) | 6×8 mesh | ||||
Diameter | mm | 1.5-2.0 | 1.5-2.0 | 2.4-3.6 | 3.6-4.8 |
Size ratio up to grade | % | ≥98 | ≥98 | ≥96 | ≥96 |
Bulk density | g/ml | ≥0.72 | ≥0.72 | ≥0.75 | ≥0.68 |
wear rate | % | ≤0.20 | ≤0.2 | ≤0.25 | ≤0.25 |
Crushing strength | N | ≥35 | ≥35 | ≥40 | ≥100 |
Static water adsorption | % | ≥21.5 | ≥21.5 | ≥21.5 | ≥21.5 |
C4H10 adsorption capacity | ≥9.4 | ≥9.4 | |||
Carbon dioxide adsorption | % | ≥15.6 | ≥15.6 | ||
Package water content | % | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
Store
Storage: Room temperature, relative humidity not more than 90%; not directly exposed to the air; avoid water, acid and alkali.
Packing: cardboard drum or carton packaging.
Note: Avoid direct exposure of molecular sieve to air.

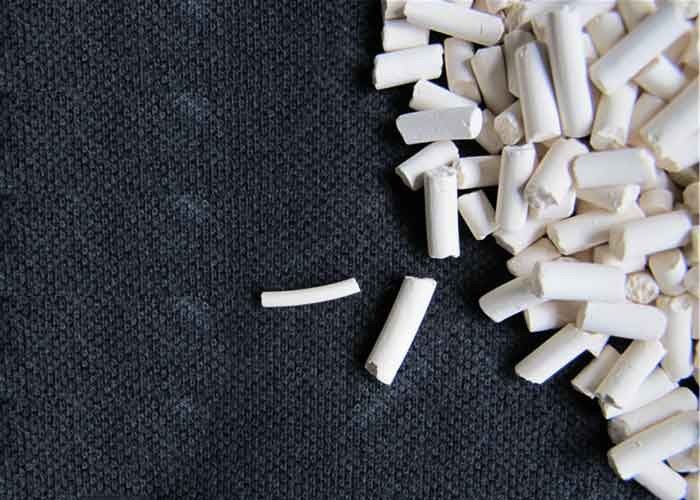

Product Pictures
Regeneration
1. Removal of water: it depends on the pressure, temperature and water content of the regeneration gas. Under normal circumstances, the dry gas at 200~350℃ will pass through the molecular sieve bed for 3~4 hours under the pressure of 0.3~0.5kg/cm to bring the outlet temperature to 110~180℃ and cool.
2. Removal of organic matter: replace organic matter with water vapor, and then remove water.
Package
Packed in iron drums, (according to the product model) net weight 125kg, 135kg, 140kg, or according to user needs.
Factory information
Shanghai Xuefeng Molecular Sieve Co., Ltd. adopts the most advanced and fully automated assembly line molecular sieve production technology in China, and has positions for dosing, kneading, extrusion, drying, roasting and packaging. The main equipment includes pelletizing machine, hardening cylinder, kneader, extruder, belt dryer, rotary roasting furnace, vibrating screen, scale and other ancillary facilities. The production process parameters are all automatically controlled, and there is no paper recorder attached. , The results of the process parameters are comprehensively recorded, and at the same time, the operators of each position shall manually record the parameters every hour to ensure the traceability of the operation process. At the same time, the company pays attention to the inspection of intermediate products, and has set up sampling points for intermediate products in the ingredients, extrusion molding, and drying positions to ensure that the intermediate products meet the specified quality requirements.
