| Place of Origin: | China |
| Certification: | ISO9001:2015 |
| Model Number: | 8×12 mesh |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25 kg / kraft paper bag, 100 kg / large bag 150 kg / sealed iron drum |
| Delivery Time: | Negotiable |
| Payment Terms: | L/C;T/T |
| Supply Ability: | 6000 ton/year |
| Product Name: | 8×12 Mesh 13X Molecular Sieve Desiccant | Classification: | Chemical Auxiliary Agent |
|---|---|---|---|
| CAS: | 1318-02-1 | Purity: | 99% |
| Usage: | Petroleum Additives, Water Treatment Chemicals | Model Number: | 13X |
| MF: | Na2O, Al2O3, SiO2 | Advantage: | Strong Adsorption Capacity, High Strength |
| Diameter: | 1.7-2.4mm | Wear Rate(%): | ≤0.20 |
| Highlight: | 13X Molecular Sieve Desiccant CAS 1318-02-1,125kg/drum 13X Molecular Sieve Desiccant,125kg/drum mol sieve 13x |
||
125kg/drum 13X Molecular Sieve Desiccant CAS 1318-02-1
Product introduction
Molecular sieve is a sodium aluminosilicate. An alkali metal alumino-silicate, in the calcium form of the Type A crystal structure. An alkali metal alumino-silicate, in the sodium form of the Type X crystal structure. Type 13X will adsorb molecules with critical diameters up to 10 Å angstroms. All molecules which can be adsorbed on Molecular Sieve types 3A, 4A, and 5A can be adsorbed on type 13X.
Molecular formula: Na2O.Al2O3 .2.45SiO2.6.OH2O
Applications: 13X Molecular Sieve is used for the dehydration and purification of various hydrocarbon and non-hydrocarbon gas and liquid streams.
Characteristics
1. Stable and excellent static and kinetic adsorption capacity
2. Higher crush strength
13X molecular sieve technical Index:
| Index Item | Unit | Technical index | |||
| Shape | APG1/16" | APG1/8" | PG1/16" | SAS-150 | |
| Diameter | mm | 1.5-2.0 | 3.0-3.5 | 1.2-2.0 | 3.6-4.8 |
| Size ratio up to grade | % | ≥98 | ≥98 | ≥98 | ≥98 |
| Bulk density | g/ml | ≥0.63 | ≥0.63 | ≥0.63 | ≤0.65 |
| Wear rate | % | ≤0.20 | ≤0.25 | ≤0.20 | ≤0.25 |
| Crushing strength | N | ≥30 | ≥65 | ≥33 | ≥90 |
| Static water adsorption | % | ≥25 | ≥25 | ≥25 | ≥25 |
| Carbon dioxide adsorption | % | ≥17.5 | ≥17.3 | ≥17.5 | |
| Package water content | % | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
| Index Item | Unit | Technical index | |||
| Shape | APG4×8 mesh | APG6×8 mesh | APG8×12 mesh | hp8×12 mesh | |
| Diameter | mm | 3.6-4.8 | 2.4-3.5 | 1.7-2.4 | 1.7-2.4 |
| Size ratio up to grade | % | ≥98 | ≥98 | ≥98 | ≥98 |
| Bulk density | g/ml | ≥0.64 | ≥0.64 | ≥0.65 | ≤0.65 |
| Wear rate | % | ≤0.20 | ≤0.25 | ≤0.20 | ≤0.25 |
| Crushing strength | N | ≥85 | ≥50 | ≥26 | ≥24 |
| Static water adsorption | % | ≥ | ≥25 | ≥25 | ≥25 |
| Carbon dioxide adsorption | % | ≥18 | ≥18 | ≥18 | ≥19.3 |
| Package water content | % | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
Store
Room temperature, relative humidity not greater than 90% indoors: avoid water, acid, alkali, isolate air, and store in airtight.
Regeneration
Removal of water: dry gas such as nitrogen, air, hydrogen, saturated hydrocarbon, etc. can be heated to 150-320°C and pass into the molecular sieve bed under 0.3-0.5kg/m2 pressure for 3-4 hours, and then to the adsorber Pass in dry cold air for about 2-3 hours, isolate the air and cool to room temperature.
Removal of organic matter: the adsorbate can be replaced from the molecular sieve with water vapor, and then heated to (1). The regeneration can also be regenerated by superheated steam or inert gas at 200-350℃. Exposure to gases that produce explosive mixtures).
The degassed substances can be regenerated by the decompression removal method.
Package
Packed in iron drums, (according to the product model) net weight 125kg, 135kg, 140kg, or according to user needs.

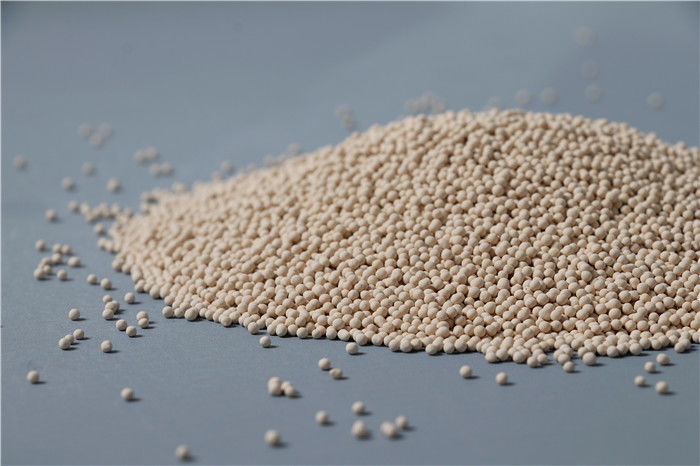

Product Pictures
Factory information
Shanghai Xuefeng Molecular Sieve Co., Ltd. adopts the most advanced and fully automated assembly line molecular sieve production technology in China, and has positions for dosing, kneading, extrusion, drying, roasting and packaging. The main equipment includes pelletizing machine, hardening cylinder, kneader, extruder, belt dryer, rotary roasting furnace, vibrating screen, scale and other ancillary facilities. The production process parameters are all automatically controlled, and there is no paper recorder attached. , The results of the process parameters are comprehensively recorded, and at the same time, the operators of each position shall manually record the parameters every hour to ensure the traceability of the operation process. At the same time, the company pays attention to the inspection of intermediate products, and has set up sampling points for intermediate products in the ingredients, extrusion molding, and drying positions to ensure that the intermediate products meet the specified quality requirements.
