| Place of Origin: | China |
| Certification: | ISO9001:2015 |
| Model Number: | APG1/16" |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25 kg / kraft paper bag, 100 kg / large bag 150 kg / sealed iron drum |
| Delivery Time: | Negotiable |
| Payment Terms: | L/C;T/T |
| Supply Ability: | 6000 ton/year |
| Product Name: | APG1/16" 13X Molecular Sieve Desiccant | Classification: | Chemical Auxiliary Agent |
|---|---|---|---|
| CAS: | 1318-02-1 | Purity: | 99% |
| Usage: | Petroleum Additives, Water Treatment Chemicals | Model Number: | 13X |
| MF: | Na2O, Al2O3, SiO2 | Advantage: | Strong Adsorption Capacity, High Strength |
| Diameter: | 1.5-2.0mm | Wear Rate(%): | ≤0.20 |
| Highlight: | 2.0mm Zeolite 13x Molecular Sieve,Industrial Grade 13X Molecular Sieve Desiccant,Industrial Grade 13x desiccant |
||
Product introduction
Molecular Sieve 13X HP is mainly used in PSA oxygen concentrators and oxygen concentrators device, and as well as the industrial PSA unit, with the characteristics of higher N2 adsorption capacity and N2 with O2 selectivity, easy desorption and etc.
Molecular formula: Na2O.Al2O3 .2.45SiO2.6.OH2O
Feature
1. Molecular sieve adsorption is a physical process that instead of a chemical changes. The adsorption process is reversible, called resolution or regeneration.
2. The zeolite molecular sieve has strong polarity in the crystal cavity, which reflects the adsorption selectivity of zeolite molecular sieve.
3. The size of the zeolite molecular sieve can be changed by ion exchange,
thereby changing its performance and achieving the purpose of shape selective adsorption and separation of mixtures.
4. The surface of most zeolite molecular sieves has a strong acid center, and at the same time, a strong coulomb field in the pores has a polarizing effect. These characteristics make it an excellent catalyst.
13X molecular sieve technical Index:
| Index Item | Unit | Technical index | |||
| Shape | APG1/16" | APG1/8" | PG1/16" | SAS-150 | |
| Diameter | mm | 1.5-2.0 | 3.0-3.5 | 1.2-2.0 | 3.6-4.8 |
| Size ratio up to grade | % | ≥98 | ≥98 | ≥98 | ≥98 |
| Bulk density | g/ml | ≥0.63 | ≥0.63 | ≥0.63 | ≤0.65 |
| Wear rate | % | ≤0.20 | ≤0.25 | ≤0.20 | ≤0.25 |
| Crushing strength | N | ≥30 | ≥65 | ≥33 | ≥90 |
| Static water adsorption | % | ≥25 | ≥25 | ≥25 | ≥25 |
| Carbon dioxide adsorption | % | ≥17.5 | ≥17.3 | ≥17.5 | |
| Package water content | % | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
Scope of application
The gas purification in the air separation unit removes water and carbon dioxide.
Drying and desulfurization of natural gas, liquefied petroleum gas, and liquid hydrocarbons.
Generally, the gas is deeply dry.
Store
Room temperature, relative humidity not greater than 90% indoors: avoid water, acid, alkali, isolate air, and store in airtight.
Regeneration
Removal of water: dry gas such as nitrogen, air, hydrogen, saturated hydrocarbon, etc. can be heated to 150-320°C and pass into the molecular sieve bed under 0.3-0.5kg/m2 pressure for 3-4 hours, and then to the adsorber Pass in dry cold air for about 2-3 hours, isolate the air and cool to room temperature.
Removal of organic matter: the adsorbate can be replaced from the molecular sieve with water vapor, and then heated to (1). The regeneration can also be regenerated by superheated steam or inert gas at 200-350℃. Exposure to gases that produce explosive mixtures).
The degassed substances can be regenerated by the decompression removal method.
Package
Packed in iron drums, (according to the product model) net weight 125kg, 135kg, 140kg, or according to user needs.

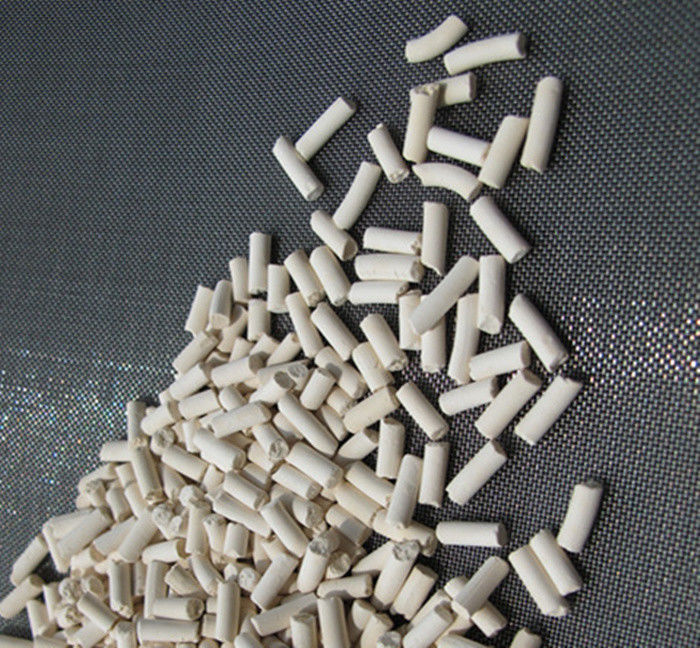

Product Pictures
Factory information
Shanghai Xuefeng Molecular Sieve Co., Ltd. adopts the most advanced and fully automated assembly line molecular sieve production technology in China, and has positions for dosing, kneading, extrusion, drying, roasting and packaging. The main equipment includes pelletizing machine, hardening cylinder, kneader, extruder, belt dryer, rotary roasting furnace, vibrating screen, scale and other ancillary facilities. The production process parameters are all automatically controlled, and there is no paper recorder attached. , The results of the process parameters are comprehensively recorded, and at the same time, the operators of each position shall manually record the parameters every hour to ensure the traceability of the operation process. At the same time, the company pays attention to the inspection of intermediate products, and has set up sampling points for intermediate products in the ingredients, extrusion molding, and drying positions to ensure that the intermediate products meet the specified quality requirements.
