| Place of Origin: | China |
| Certification: | ISO9001:2015 |
| Model Number: | 8×12 mesh |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25 kg / kraft paper bag, 100 kg / large bag 150 kg / sealed iron drum |
| Delivery Time: | Negotiable |
| Payment Terms: | L/C;T/T |
| Supply Ability: | 6000 ton/year |
| Product Name: | 8×12 Mesh 13X Molecular Sieve Desiccant | Classification: | Chemical Auxiliary Agent |
|---|---|---|---|
| CAS: | 1318-02-1 | Purity: | 99% |
| Usage: | Petroleum Additives, Water Treatment Chemicals | Model Number: | 13X |
| MF: | Na2O, Al2O3, SiO2 | Advantage: | Strong Adsorption Capacity, High Strength |
| Diameter: | 1.7-2.4mm | Wear Rate(%): | ≤0.20 |
| Highlight: | 8×12 beads 13X Molecular Sieve Desiccant,1.7mm 13X Molecular Sieve Desiccant,1.7mm mol sieve 13x |
||
8×12 Beads 1.7mm 13X Molecular Sieve Desiccant
Product introduction
Molecular Sieve 13X is the sodium form of the type X crystal and has a much larger pore opening than the type A crystals. It will adsorb molecules with a kinetic diameter of less than 9 Angstrom (0.9 nm) and exclude those larger.
It also has the highest theoretical capacity of the common adsorbents and very good mass transfer rates. It can remove impurities too large to fit into a type A crystal and is commonly used to separate nitrogen from oxygen. This product is suitable for For cryogenic air separation devices of various sizes.
Molecular formula: Na2O.Al2O3 .2.45SiO2.6.OH2O
13X molecular sieve technical Index:
| Index Item | Unit | Technical index | |||
| Shape | APG1/16" | APG1/8" | PG1/16" | SAS-150 | |
| Diameter | mm | 1.5-2.0 | 3.0-3.5 | 1.2-2.0 | 3.6-4.8 |
| Size ratio up to grade | % | ≥98 | ≥98 | ≥98 | ≥98 |
| Bulk density | g/ml | ≥0.63 | ≥0.63 | ≥0.63 | ≤0.65 |
| Wear rate | % | ≤0.20 | ≤0.25 | ≤0.20 | ≤0.25 |
| Crushing strength | N | ≥30 | ≥65 | ≥33 | ≥90 |
| Static water adsorption | % | ≥25 | ≥25 | ≥25 | ≥25 |
| Carbon dioxide adsorption | % | ≥17.5 | ≥17.3 | ≥17.5 | |
| Package water content | % | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
| Index Item | Unit | Technical index | |||
| Shape | APG4×8 mesh | APG6×8 mesh | APG8×12 mesh | hp8×12 mesh | |
| Diameter | mm | 3.6-4.8 | 2.4-3.5 | 1.7-2.4 | 1.7-2.4 |
| Size ratio up to grade | % | ≥98 | ≥98 | ≥98 | ≥98 |
| Bulk density | g/ml | ≥0.64 | ≥0.64 | ≥0.65 | ≤0.65 |
| Wear rate | % | ≤0.20 | ≤0.25 | ≤0.20 | ≤0.25 |
| Crushing strength | N | ≥85 | ≥50 | ≥26 | ≥24 |
| Static water adsorption | % | ≥ | ≥25 | ≥25 | ≥25 |
| Carbon dioxide adsorption | % | ≥18 | ≥18 | ≥18 | ≥19.3 |
| Package water content | % | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
Main uses:
Air purification for air separation plant(coadsorption CO2 and H2O)
Drying and desulfurization for nature gas,LPG,liquid hydrocarbon
Drying and purification for common gases
Get oxygen by PSA(Pressure Swing Adsorption)
Bigger critical diameter molecular adsorption
Adsorb any molecular which can be adsorbed by 3A,4A and 5A molecular sieves.
Store
Room temperature, relative humidity not greater than 90% indoors: avoid water, acid, alkali, isolate air, and store in airtight.
Regeneration
Removal of water: dry gas such as nitrogen, air, hydrogen, saturated hydrocarbon, etc. can be heated to 150-320°C and pass into the molecular sieve bed under 0.3-0.5kg/m2 pressure for 3-4 hours, and then to the adsorber Pass in dry cold air for about 2-3 hours, isolate the air and cool to room temperature.
Removal of organic matter: the adsorbate can be replaced from the molecular sieve with water vapor, and then heated to (1). The regeneration can also be regenerated by superheated steam or inert gas at 200-350℃. Exposure to gases that produce explosive mixtures).
The degassed substances can be regenerated by the decompression removal method.
Package
Packed in iron drums, (according to the product model) net weight 125kg, 135kg, 140kg, or according to user needs.
Our service
According to the user's production requirements, we can send technicians to the site to actively cooperate and guide the loading until the drive is successful. In product trial, provide guidance and training on product knowledge and testing technology to relevant personnel when necessary.
We can not only provide high-quality molecular sieves, but also have domestic first-class adsorption experts. We can provide long-term technical support for the improvement of molecular sieve system process, equipment design and transformation, technical consultation, installation and commissioning, personnel training, etc.
In order to achieve a win-win situation with customers, Shanghai Xuefeng will continue to provide customers with pre-sales, in-sales and after-sales services.

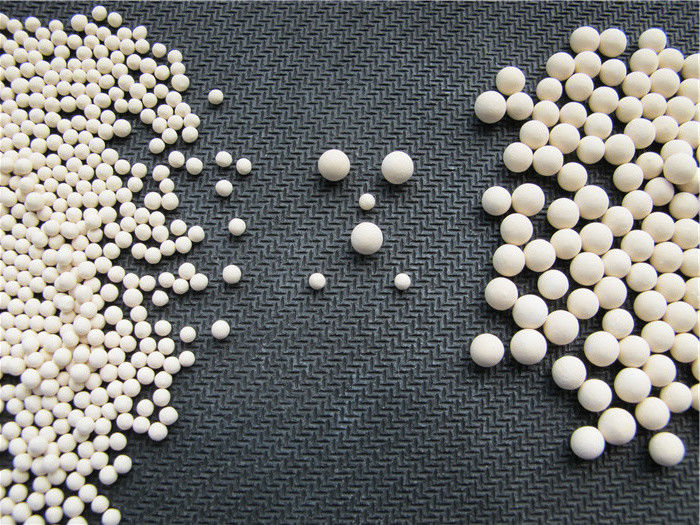

Product Pictures
Factory information
Shanghai Xuefeng Molecular Sieve Co., Ltd. adopts the most advanced and fully automated assembly line molecular sieve production technology in China, and has positions for dosing, kneading, extrusion, drying, roasting and packaging. The main equipment includes pelletizing machine, hardening cylinder, kneader, extruder, belt dryer, rotary roasting furnace, vibrating screen, scale and other ancillary facilities. The production process parameters are all automatically controlled, and there is no paper recorder attached. , The results of the process parameters are comprehensively recorded, and at the same time, the operators of each position shall manually record the parameters every hour to ensure the traceability of the operation process. At the same time, the company pays attention to the inspection of intermediate products, and has set up sampling points for intermediate products in the ingredients, extrusion molding, and drying positions to ensure that the intermediate products meet the specified quality requirements.
