CAS 1318-02-1 2.4mm Zeolite 13x Molecular Sieve

CAS 1318-02-1 2.4mm Zeolite 13x Molecular Sieve

13X molecular sieve introduction:

13X molecular sieves is the Na-X type crystal structure of the alkali aluminosilicate which has

10Å aperture,it can adsorb any molecular whose diameter less than 10Å.It can be used catalyst carrier,co-adsorption of H2O and CO2,co-adsorption of H2O and hydrogen sulfide gas,

mainly applied to medicine industry and compression air system.13X molecular sieve has various type according to the different propose.

Application

For general industrial gas drying, in the air separation plant feed gas purification (meanwhile removal of H2O and CO2 and some hydrocarbons) to meet the special requirements of air separation industry, improve the H2O and CO2 adsorption ability, avoid in the process of deep cooling air separation appeared frozen tower phenomenon, features of high carbon dioxide adsorbance, low regeneration temperature, long service life, etc.

13X molecular sieve technical Index:

Store

Room temperature, relative humidity not greater than 90% indoors: avoid water, acid, alkali, isolate air, and store in airtight.

Regeneration

Removal of water: dry gas such as nitrogen, air, hydrogen, saturated hydrocarbon, etc. can be heated to 150-320°C and pass into the molecular sieve bed under 0.3-0.5kg/m2 pressure for 3-4 hours, and then to the adsorber Pass in dry cold air for about 2-3 hours, isolate the air and cool to room temperature.

Removal of organic matter: the adsorbate can be replaced from the molecular sieve with water vapor, and then heated to (1). The regeneration can also be regenerated by superheated steam or inert gas at 200-350℃. Exposure to gases that produce explosive mixtures).

The degassed substances can be regenerated by the decompression removal method.

Package

Packed in iron drums, (according to the product model) net weight 125kg, 135kg, 140kg, or according to user needs.

Technical Advantage

• Devoted to molecular sieves R&D and manufacture;

• Over 20 years of activated carbon industry expertise;

• ISO 9001:2008 certified;

• Owns proprietary intellectual property rights;

• Powerful R&D technical strength;

• Possessing sophisticated manufacturing equipment and inspection equipment;

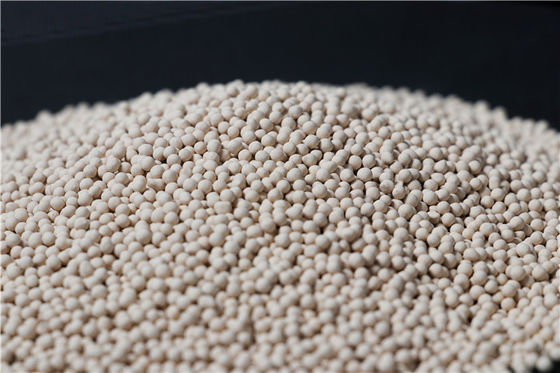

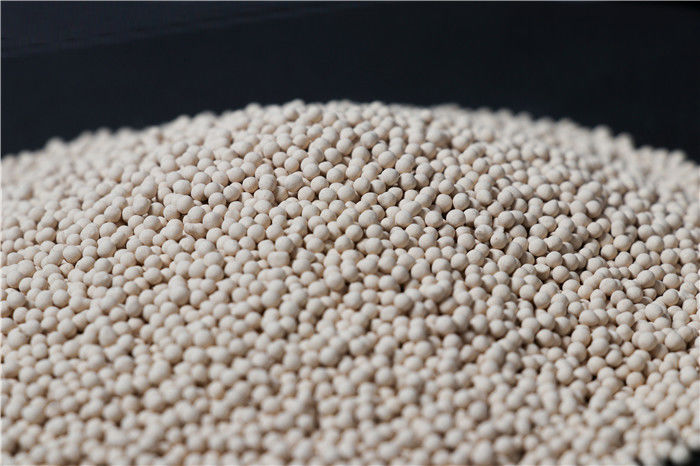

Product Pictures

Factory information

Shanghai Xuefeng Molecular Sieve Co., Ltd. adopts the most advanced and fully automated assembly line molecular sieve production technology in China, and has positions for dosing, kneading, extrusion, drying, roasting and packaging. The main equipment includes pelletizing machine, hardening cylinder, kneader, extruder, belt dryer, rotary roasting furnace, vibrating screen, scale and other ancillary facilities. The production process parameters are all automatically controlled, and there is no paper recorder attached. , The results of the process parameters are comprehensively recorded, and at the same time, the operators of each position shall manually record the parameters every hour to ensure the traceability of the operation process. At the same time, the company pays attention to the inspection of intermediate products, and has set up sampling points for intermediate products in the ingredients, extrusion molding, and drying positions to ensure that the intermediate products meet the specified quality requirements.
