Product introduction

Molecular Sieve 13X is a multiple purpose, highly porous, high capacity alkali metal alumino-silicate in the spherical form. It is the sodium form of the Type X crystal structure with pore diameters of approximately 10Å. It can adsorb all molecules that can be adsorbed by 3A, 4A, and 5A molecular sieve. Type 13X molecular sieve can also adsorb molecules such as aromatics and branched-chain hydrocarbons, which have large critical diameters.

High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG is kind of sodium aluminosilicate, with a pore opening of 9-10 angstroms (0.9nm). The main component of the X-type molecular sieve is aluminosilicate, silicon-oxy and alumina tetrahedron to form an FAU-type structure, as know as NaX-type.

Molecular formula: Na2O.Al2O3 .2.45SiO2.6.OH2O

13X molecular sieve technical Index:

Scope of application

1. High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG used for medical oxygen in small-scale

oxygen concentrators;

2. High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG removal of mercaptans and hydrogen

sulfide from natural gas;

3. High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG used for deep drying of general gas

(such as compressed air, permanent gases);

4. High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG ammonia synthesis gas drying, and

purification, production of bulk oxygen in PSA units;

5. High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG is applied in the desiccating process

of industrial gas and gas purification in air separation unit;

6. High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG removed CO2 in cracked gas, air plant feed purification (simultaneous removal of H2O and CO2);

7. High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG has the characteristics of high CO2

adsorption capacity, low regeneration temperature, and long service life;

8. High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG used for desulfurization aerosol propellant

deodorant and removal of n-chained composition from aromatics;

9. High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG dehydration and desulfuration of natural

gas, liquefied petroleum gas(LPG), liquid alkane and liquefied hydrocarbon;

10. High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG used for natural gas, liquefied petroleum

gas, liquid paraffin (propane, butane) dehydration and desulphurization (removal of H2S and mercaptan).

Storage

1. Avoid moisture, avoid scrolling, throw and sharp shocking during transportation, rainproof facilities should be readied

2. It should be stored in dry and ventilated warehouse to prevent contamination or moisture.

Regeneration

Removal of water: dry gas such as nitrogen, air, hydrogen, saturated hydrocarbon, etc. can be heated to 150-320°C and pass into the molecular sieve bed under 0.3-0.5kg/m2 pressure for 3-4 hours, and then to the adsorber Pass in dry cold air for about 2-3 hours, isolate the air and cool to room temperature.

Removal of organic matter: the adsorbate can be replaced from the molecular sieve with water vapor, and then heated to (1). The regeneration can also be regenerated by superheated steam or inert gas at 200-350℃. Exposure to gases that produce explosive mixtures).

The degassed substances can be regenerated by the decompression removal method.

Package

Packed in iron drums, (according to the product model) net weight 125kg, 135kg, 140kg, or according to user needs.

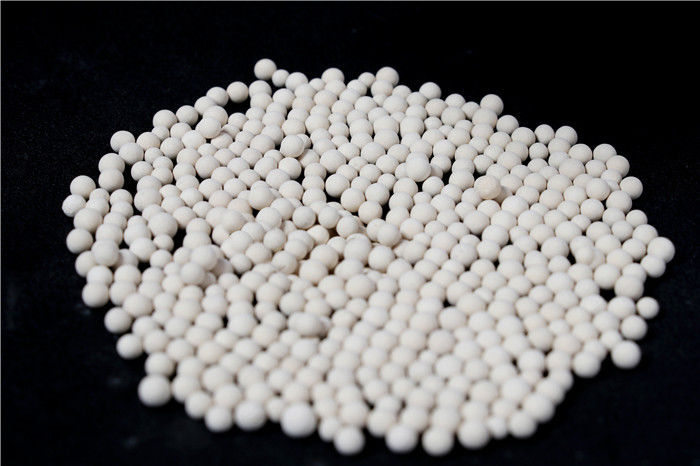

Product Pictures

Factory information

Shanghai Xuefeng Molecular Sieve Co., Ltd. adopts the most advanced and fully automated assembly line molecular sieve production technology in China, and has positions for dosing, kneading, extrusion, drying, roasting and packaging. The main equipment includes pelletizing machine, hardening cylinder, kneader, extruder, belt dryer, rotary roasting furnace, vibrating screen, scale and other ancillary facilities. The production process parameters are all automatically controlled, and there is no paper recorder attached. , The results of the process parameters are comprehensively recorded, and at the same time, the operators of each position shall manually record the parameters every hour to ensure the traceability of the operation process. At the same time, the company pays attention to the inspection of intermediate products, and has set up sampling points for intermediate products in the ingredients, extrusion molding, and drying positions to ensure that the intermediate products meet the specified quality requirements.
