| Place of Origin: | China |
| Certification: | ISO9001:2015 |
| Model Number: | 6×8 mesh |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25 kg / kraft paper bag, 100 kg / large bag 150 kg / sealed iron drum |
| Delivery Time: | Negotiable |
| Payment Terms: | L/C;T/T |
| Supply Ability: | 6000 ton/year |
| Product Name: | 5A Molecular Sieve Desiccant | Classification: | Chemical Auxiliary Agent |
|---|---|---|---|
| CAS: | 1318-02-1 | MF: | CaO, Na2O, Al2O3, SiO2 |
| Purity: | 99% | Usage: | Petroleum Additives, Water Treatment Chemicals |
| Model Number: | 5A | Advantage: | Strong Adsorption Capacity, High Strength |
| Diameter(mm): | 3.6-4.8 | Shape: | Sphere, Strip, Etc |
| High Light: | 125kg/Drum 5A Molecular Sieve Beads,4x8 Bead 5A Molecular Sieve,125kg/Drum molecular sieve material |
||

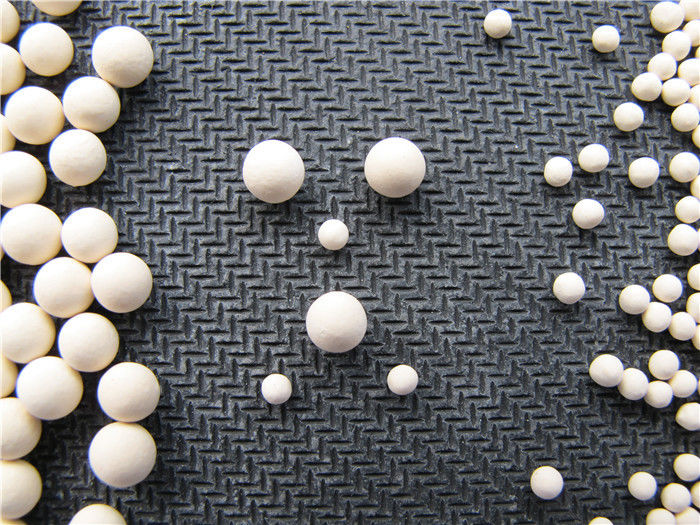

4×8 Mesh 125kg/Drum 5A Molecular Sieve Beads
Product introduction
Molecular Sieve adsorbents with a pore size of 5 angstrom (5A), 5A molecular sieves are unable to adsorb any molecules or impurities that are smaller than 5A. A calcium form of type A crystalline structure, this particular sieve is an alkali-aluminosilicate that is most commonly used to separate isomerous alkanes from normal alkanes and to co-adsorb moisture and water along with carbon dioxide from gases. In additional 5A molecular sieves are used for gaseous pressure swing adsorption (PSA)—that is to separate particular gases from other gases. The rate of adsorption sequence for 5A molecular sieves is C3-C14, C2H5CL, C2H5Br, CH3L, C2H5NH2, CH2CL2CH2Br2, CHF2CL, CHF3, CF4, (CH3)NH2, B2H6CF2Cl2, CHFCl2, and CF3Cl.
Scope of application
This kind of sieve absorbs substances at the molecular level. It can absorb up to 22% of its body weight. The adsorption principle is similar to that of chromatography, except that the molecular composition of the substance is not changed.
1. Natural gas drying, desulfurization, and carbon dioxide removal;
2. Separation of nitrogen and oxygen, separation of nitrogen and hydrogen to produce oxygen, nitrogen and hydrogen;
3. Petroleum dewaxing, separation of normal hydrocarbons from branched hydrocarbons and cyclic hydrocarbons.
5A molecular sieve technical Index:
| Index Item | Unit | Technical index | |||
| 5A-1 1/16" | PSA－H2 | ||||
| Size | 1/16" | 4×8 mesh | |||
| (RK-29) | 6×8 mesh | ||||
| Diameter | mm | 1.5-2.0 | 1.5-2.0 | 2.4-3.6 | 3.6-4.8 |
| Size ratio up to grade | % | ≥98 | ≥98 | ≥96 | ≥96 |
| Bulk density | g/ml | ≥0.72 | ≥0.72 | ≥0.75 | ≥0.68 |
| wear rate | % | ≤0.20 | ≤0.2 | ≤0.25 | ≤0.25 |
| Crushing strength | N | ≥35 | ≥35 | ≥40 | ≥100 |
| Static water adsorption | % | ≥21.5 | ≥21.5 | ≥21.5 | ≥21.5 |
| C4H10 adsorption capacity | ≥9.4 | ≥9.4 | |||
| Carbon dioxide adsorption | % | ≥15.6 | ≥15.6 | ||
| Package water content | % | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
Regeneration
1. Removal of water: it depends on the pressure, temperature and water content of the regeneration gas. Under normal circumstances, the dry gas at 200~350℃ will pass through the molecular sieve bed for 3~4 hours under the pressure of 0.3~0.5kg/cm to bring the outlet temperature to 110~180℃ and cool.
2. Removal of organic matter: replace organic matter with water vapor, and then remove water.
Store
Storage: Room temperature, relative humidity not more than 90%; not directly exposed to the air; avoid water, acid and alkali.
Packing: cardboard drum or carton packaging.
Note: Avoid direct exposure of molecular sieve to air.
Product Pictures
Package
Packed in iron drums, (according to the product model) net weight 125kg, 135kg, 140kg, or according to user needs.
Factory information
Shanghai Xuefeng Molecular Sieve Co., Ltd. adopts the most advanced and fully automated assembly line molecular sieve production technology in China, and has positions for dosing, kneading, extrusion, drying, roasting and packaging. The main equipment includes pelletizing machine, hardening cylinder, kneader, extruder, belt dryer, rotary roasting furnace, vibrating screen, scale and other ancillary facilities. The production process parameters are all automatically controlled, and there is no paper recorder attached. , The results of the process parameters are comprehensively recorded, and at the same time, the operators of each position shall manually record the parameters every hour to ensure the traceability of the operation process. At the same time, the company pays attention to the inspection of intermediate products, and has set up sampling points for intermediate products in the ingredients, extrusion molding, and drying positions to ensure that the intermediate products meet the specified quality requirements.
