1.2mm 1/16 Inch 13X Molecular Sieve Desiccant

1.2mm 1/16 Inch 13X Molecular Sieve Desiccant

Product introduction

13X molecular sieve has a pore size of 10A, which can adsorb molecules smaller than 10A. Any molecule that can be adsorbed on 3A, 4A, and 5A molecular sieves can be adsorbed by 13X. It can be used for catalyst carrier, water and carbon dioxide co-adsorption, water and hydrogen sulfide gas co-adsorption, It is mainly used in the drying of medicine and air compression systems. There are different professional varieties according to different applications. 13X-APG special molecular sieve for air separation is a special molecular sieve produced to meet the special requirements of the cryogenic air separation industry, further improve the adsorption capacity of molecular sieve for carbon dioxide and water, and avoid freezing tower phenomenon in the air separation rectification process. This product is suitable for For cryogenic air separation devices of various sizes.

Molecular formula: Na2O.Al2O3 .2.45SiO2.6.OH2O

Size

13X - Zeolites are available in beads of 1-2 mm, (10x18 mesh) 2-3 mm, (8x12 mesh) , 2.5-5 mm, (4x8 mesh) and as powder, and in pellet 1.6, 3.2.

Attention

To avoid damp and pre-adsorption of organic before running, or must to be reactivated.

13X molecular sieve technical Index:

Scope of application

The gas purification in the air separation unit removes water and carbon dioxide.

Drying and desulfurization of natural gas, liquefied petroleum gas, and liquid hydrocarbons.

Generally, the gas is deeply dry.

Store

Room temperature, relative humidity not greater than 90% indoors: avoid water, acid, alkali, isolate air, and store in airtight.

Regeneration

Xuefeng molecular sieve Type 13X can be regenerated by either heating in the case of thermal swing processes; or by lowering the pressure in the case of pressure swing processes. To remove moisture from a 13X molecular sieve, a temperature of 250-300°C is required. A properly regenerated molecular sieve can give moisture dew points below -100°C, or mercaptan or CO2 levels below 2 ppmv.

The outlet concentrations on a pressure swing process will depend on the gas present, and on the conditions of the process

Package

Packed in iron drums, (according to the product model) net weight 125kg, 135kg, 140kg, or according to user needs.

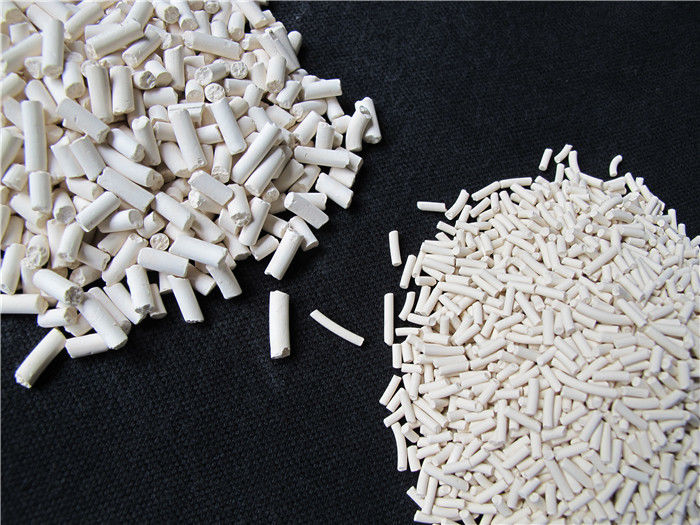

Product Pictures

Factory information

Shanghai Xuefeng Molecular Sieve Co., Ltd. adopts the most advanced and fully automated assembly line molecular sieve production technology in China, and has positions for dosing, kneading, extrusion, drying, roasting and packaging. The main equipment includes pelletizing machine, hardening cylinder, kneader, extruder, belt dryer, rotary roasting furnace, vibrating screen, scale and other ancillary facilities. The production process parameters are all automatically controlled, and there is no paper recorder attached. , The results of the process parameters are comprehensively recorded, and at the same time, the operators of each position shall manually record the parameters every hour to ensure the traceability of the operation process. At the same time, the company pays attention to the inspection of intermediate products, and has set up sampling points for intermediate products in the ingredients, extrusion molding, and drying positions to ensure that the intermediate products meet the specified quality requirements.
